Fluid Parts Modeling
I’ve worked on several parts which include complicated fluid channels. These result in an interesting CAD modeling challenge to juggle the negative space of the flow channels against positive features like mounting flanges and support gussets. The parts pictured below were all intended for resin 3D printing which is a powerful tool for producing complex fluid handling parts.
Liquid Handler Tip Washing Station. Designed to reduce footprint over manufacturer provided wash station and to accommodate custom dual parallel tip setup.
Liquid Handler Tip Washing Station. Section view showing tip wash pocket and drain channel.
Liquid Handler Tip Washing Station with tips staged above.

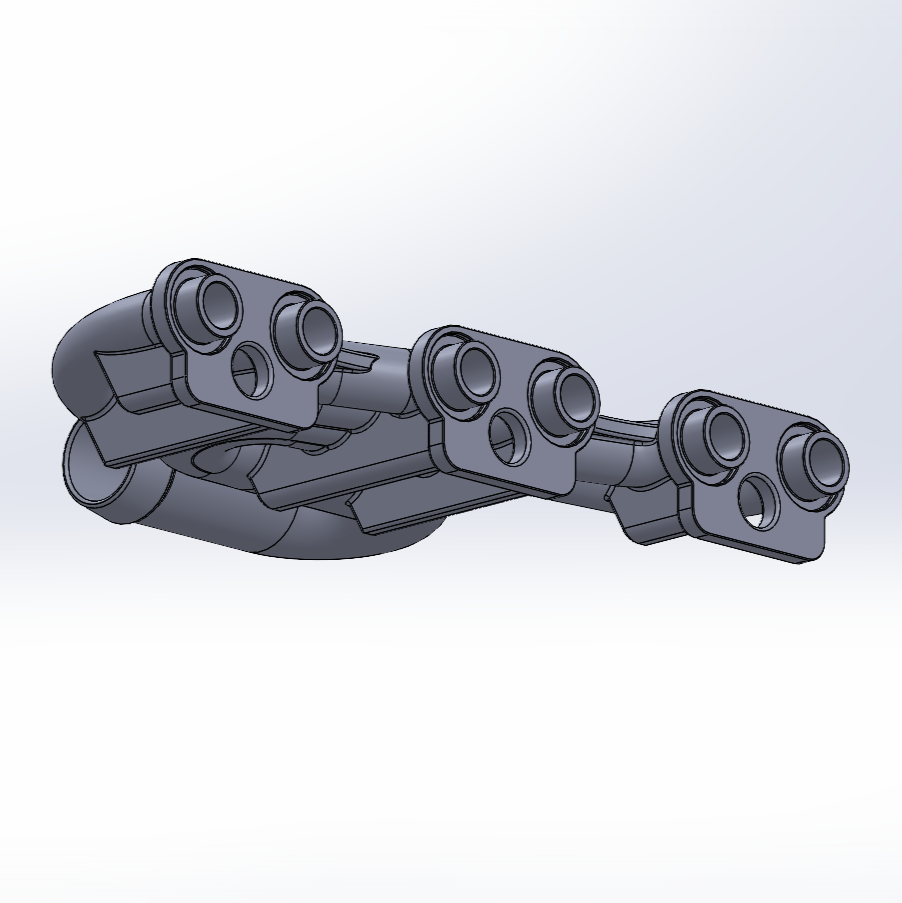

1-to-6 manifold
1-to-6 manifold
1-to-6 manifold (alternate orientation)
1-to-6 manifold o-ring sealed mount flanges
